In high-end assembly fields such as automotive manufacturing, the stability of bolted connections directly affects vehicle safety and service life. As a core assembly tool, the screw nutrunner's performance is closely related to bolt torque distribution and friction coefficient. Industry data shows that only 10% of torque is converted into clamping force during bolt tightening, while the remaining 90% is consumed by friction. This highlights the critical importance of controlling torque distribution and friction coefficient stability.

Friction is the core cause of torque loss, and the friction coefficient is the key indicator determining frictional resistance. Its stability directly determines torque conversion efficiency.

Friction Coefficient: The Core Factor Determining Torque Conversion Efficiency

The friction coefficient is not a fixed value but a dynamic variable determined by the microscopic state of the contact surfaces and external conditions.

(I) Microscopic Topography of the Contact Surface

Regardless of the machining process, metal surfaces have tiny asperities (rough peaks). Their shape, height, and distribution directly determine friction behavior. During tightening, these asperities press against and shear each other, undergoing plastic deformation. The actual contact area continuously increases, and the frictional resistance changes accordingly, leading to fluctuations in the friction coefficient. For example, an untreated rough metal surface has a higher and less stable friction coefficient.

(II) Surface Treatment and Lubrication Condition

• Surface Treatment Processes: Processes like electro-galvanizing and phosphating form surface films with different characteristics, directly altering the friction coefficient.

• Lubrication Conditions: Slight changes in lubrication status can cause fluctuations in the friction coefficient.

(III) External Working Conditions

• Tightening Speed: Excessively high rotational speed can increase the temperature of the contact surfaces and increase associated risks, causing the friction coefficient to rise. Low-speed tightening reduces thermal effects, helping to maintain a stable friction coefficient.

• Bolt and Workpiece Material: Differences in bolt strength grade and the hardness of the workpiece contact surface lead to differences in the yield strength and shear strength at contact points, thereby affecting the friction coefficient.

• Environment and Contaminants: Humid, corrosive environments increase the friction coefficient. Contaminants like metal shavings or oil between threads disrupt the uniformity of the contact surface, leading to an unstable friction coefficient.

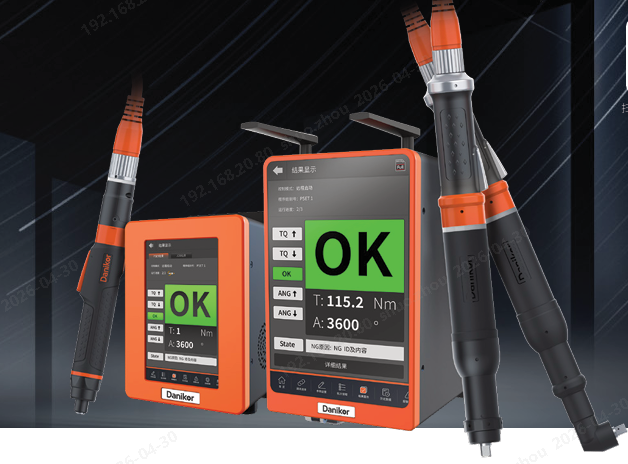

Danikor Screw Nutrunner: Expert in Tightening Precision Assurance for the Automotive Industry

On core stations of automotive OEMs, such as powertrains, chassis suspensions, and final assembly, the requirements for the stability and consistency of bolt tightening are extremely stringent. With over a decade of experience in the automotive automation assembly field, Danikor focuses on industry pain points, using its proprietary core technologies to solve the challenges of torque and friction coefficient control.

(I) High-Precision Control, Minimizing the Impact of Friction Coefficient Fluctuations

The Danikor screw nutrunner is equipped with high-precision sensors, achieving a torque control standard deviation accuracy of 6σ ±5%. It supports multiple tightening strategies, including the torque-angle method and torque control method. The device monitors dynamic changes in torque, speed, and angle during the tightening process in real-time. Using intelligent algorithms, it compensates for the effects of friction coefficient fluctuations. Even with small differences in the friction coefficient, it ensures stable clamping force, preventing connection failure caused by uneven torque loss.

(II) Adapting to Multiple Automotive Scenarios, Ensuring Stable Operation Under All Working Conditions

To meet the needs of different stations in automotive manufacturing, the Danikor screw nutrunner features an ultra-wide torque range of 0.02 to 600 Nm, suitable for all assembly scenarios from small precision screws to high-torque body bolts. In new energy vehicle battery pack assembly, it handles the alternating soft and hard connections of dense bolt groups, overcoming friction coefficient changes caused by contact surface deformation. On high-precision stations like engine cylinder blocks, it precisely controls tightening speed. Danikor nutrunners are widely used by leading automotive OEMs such as BYD, Geely, and Volkswagen.

(III) Digital Traceability, Aiding Process Optimization

The device features a built-in intelligent control system that records the entire tightening process data and dynamically generates torque-angle curves. It provides real-time warnings for issues like abnormal torque or excessive frictional resistance. The tightening data for every screw is traceable, helping enterprises analyze the variation patterns of the friction coefficient under different working conditions, thereby improving assembly quality and production efficiency.

Conclusion

Bolt torque distribution and the friction coefficient are jointly determined by multiple factors, including the microscopic topography of the contact surface, surface treatment, lubrication condition, and tightening speed. The precision and intelligence level of the screw nutrunner are key to offsetting friction fluctuations and ensuring clamping force stability. Leveraging its technical expertise accumulated in the automotive industry and its ability to adapt to various scenarios, Danikor provides reliable tightening solutions for automotive OEMs with its high-precision, intelligent screw nutrunner products, supporting the upgrade of high-end assembly quality.
